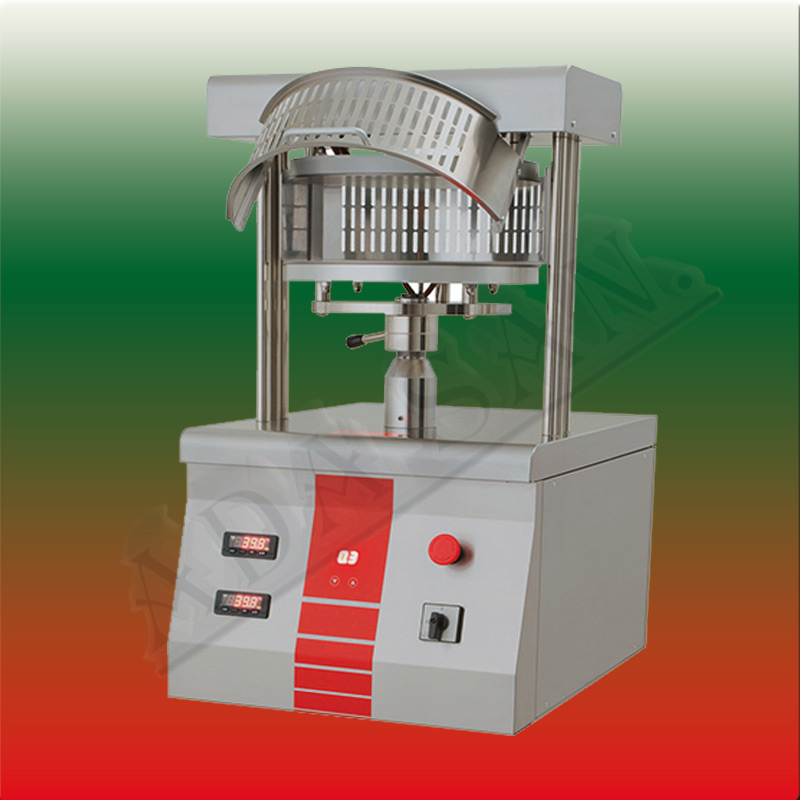

Pizza forming machine PF40 40cm 400V
| Pizza shaping machine PF40 | |
| Technical characteristics | |
| Power supply | 400 V |
| Upper plate diameter | 390 mm |
| Lower plate diameter | 400 mm |
| Packing sizes | 71x92x110 cm |
| Phase | 3+N+T |
| Dough weight | 200÷350 g |
| Absorbed power | 8,1 kW |
| Three-Phase motor power | 1,1 kW - 1,5 HP |
| Power of top heating elements | 3500 W |
| Power of bottom heating elements | 3500 W |
| Nr. Heating Elements | 1 + 1 |
| Temperature | 150° C max |
| VAC | 400 |
| Hz | 50 |
| Model | PF 40 |
| Dimensions | 550 x 670 x 890 |
| Net weight | 116 |
| Gross weight | 133 |
| Volume | 0,327965 |
| Europe-wide delivery and dealer discounts possible! | |
Dates as PDF Download
An effective machine under functionality and design profile. Safety: respect of CE and RoHS standards. Safety device and accident prevention: grid block, start button only with closed grid. Performance: high productivity, thanks to AISI 304 and high thermal conductivity plates. Reduced working cycles, pressing time from 0,5 sec., quick gripping. Modularity: several models for pizza bases from 30 to 50 cm. Convenience: easy use, also for not skilled operators. Quick clean-up, thanks to the open base and detachable grid. Flexibility: simplified thickness dough base regulation, with progressive plates for a pizza with edge. Speed working and safe use. High hour productivity rate: indispensable requirements in pizzeria during peak hours. Possibility of remixing the dough after pressing. Electricity specifications for mechanical shaping machine: they work 400 Volts three phase 50 Hz and they are available in single phase by inverter, as option.
