1740 x 1560 x 840 mm,
diameter inside: 1200 mm
capacity: 7-9 pizzas, ca. 100 pizzas / hour,
temp. range: max + 350°C, 430 kg

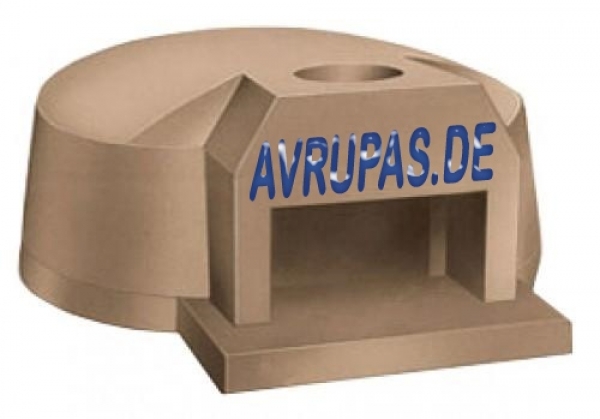

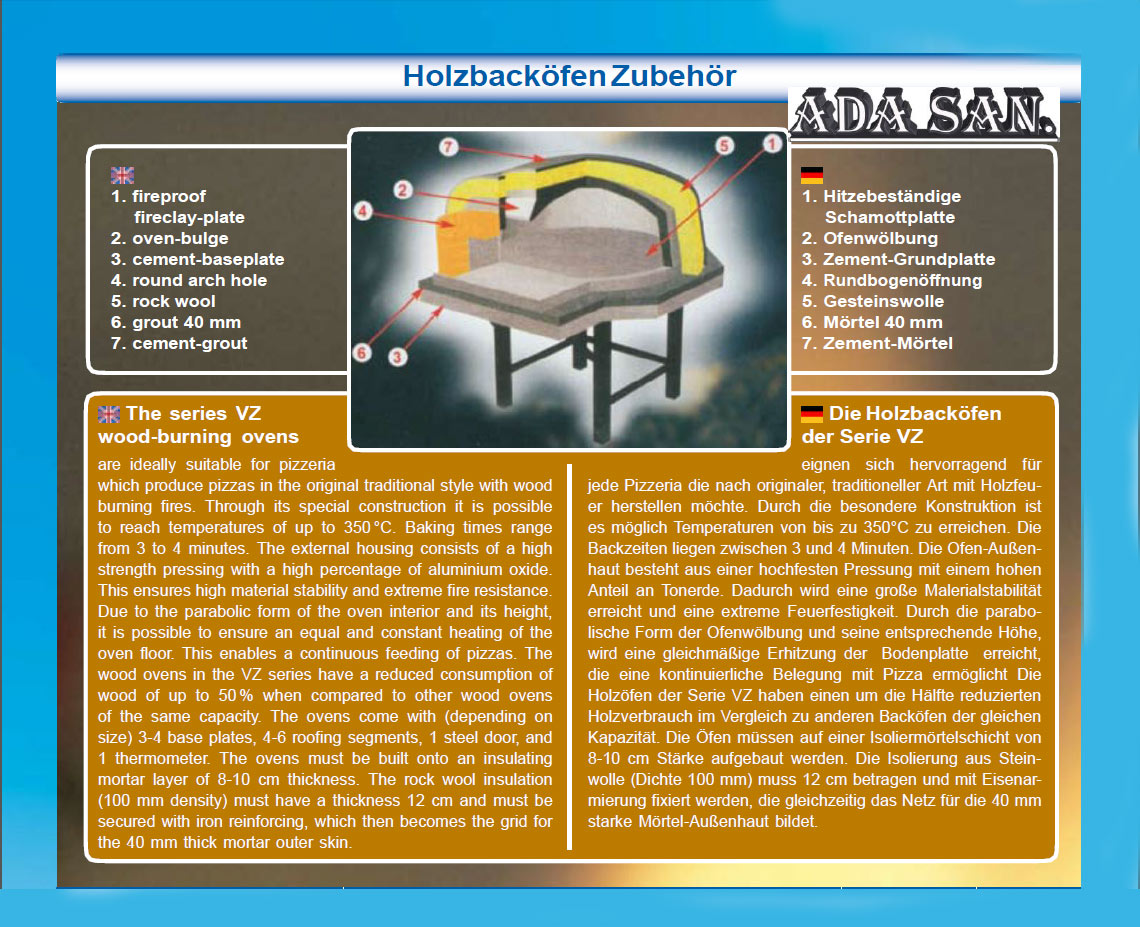

The series VZ wood-burning ovens
which produce pizzas in the original traditional style with wood burning fires. Through its special construction it is possible to reach temperatures of up to 350 °C. Baking times range from 3 to 4 minutes. The external housing consists of a high strength pressing with a high percentage of aluminium oxide. This ensures high material stability and extreme fire resistance. Due to the parabolic form of the oven interior and its height, it is possible to ensure an equal and constant heating of the oven floor. This enables a continuous feeding of pizzas. The wood ovens in the VZ series have a reduced consumption of wood of up to 50 % when compared to other wood ovens of the same capacity. The ovens come with (depending on size) 3-4 base plates, 4-6 roofing segments, 1 steel door, and 1 thermometer. The ovens must be built onto an insulating mortar layer of 8-10 cm thickness. The rock wool insulation (100 mm density) must have a thickness 12 cm and must be secured with iron reinforcing, which then becomes the grid for the 40 mm thick mortar outer skin
more info download as pdf file
