Dough machine Spiral mixing machine IF 22 VS, 22L, 230V, 400x690x630mm
Dough machine Spiral mixing machine IF 22 VS, 22L, 230V, 400x690x630mm

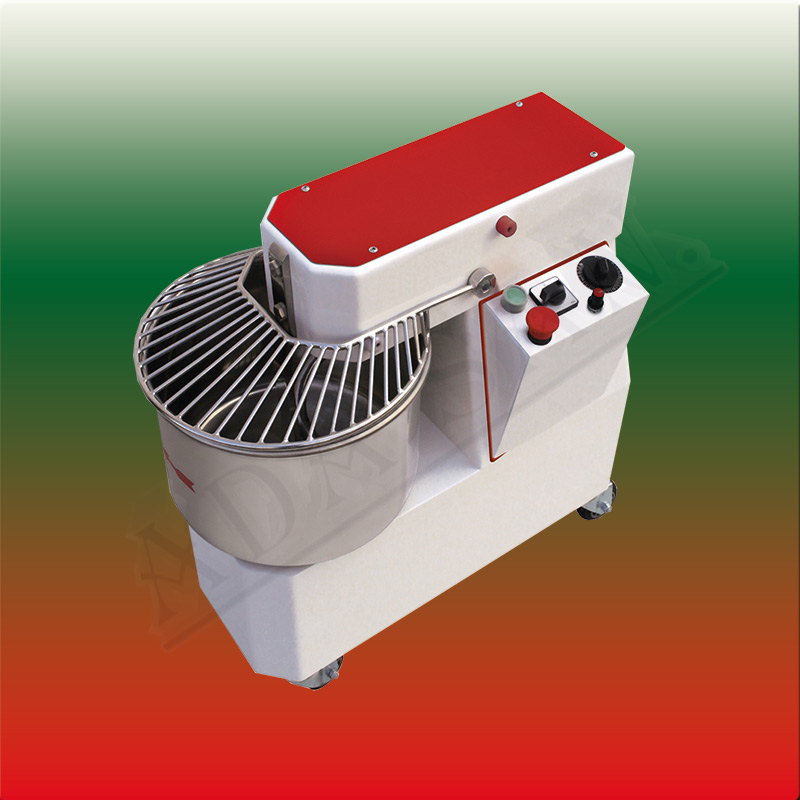

Spiral mixer IF 22 VS |
Technical characteristics |
Power supply |
230 V |
Bowl capacity |
22 l |
Bowl diameter |
35x31 cm |
Packing sizes |
47x77x77cm |
Phase |
1+N+T |
Dough/hour |
70 kg |
Dough weight |
18 kg |
Absorbed power |
0,75 kW |
Three-Phase motor power |
0,75 kW - 1 HP |
Nr. Heating Elements |
0,75 kW |
VAC |
230 |
Hz |
50/60 |
Model |
IF 22 VS |
Dimensions |
400 x 690 x 630 |
Net weight |
76 |
Gross weight |
100 |
Volume |
0,17388 |
Europe-wide delivery and dealer discounts possible! |
Dates as PDF Download
These machines replace many of the traditional ones and have remarkable advantages. Simple installation: thanks to the performances of the Inverter, they can be connected from 200 to 240 Volts, 50-60 Hz, (plugging to single phase system, or three phase 230 – 400 V); they always fit a three phase 230 Volts motor. Better reliability: the motor is fully protected from electricity overcharge, due to accidental causes, motor overheating, short circuit, etc.; it is less stressed for the reduced rpm , from 1.400/2.800 to 900/1.750. Better efficiency: energy saving up to 40% thanks to the best motor exploitation at full load. Higher performances: variable and adjustable speed by a potentiometer, from 8,8 to 17 for the bowl and from 88 to 170 rpm for the spiral. Special working cycles: the parameters of the inverter can be adjusted for special operations (the modifications are applied upon agreement between the Manufacturer and the Operator). Stocking cost optimization: one machine can cover the demand of several traditional ones of the same model. Machine more silent: thanks to the rpm drop and to the chains automatic tension regulation, by chain tensioners, there are less noises and mechanical wear of dynamic components. Cost reduction: the machine is simplified in the mechanical and electric parts. The spiral mixers with inverter are manufactured by ourselves exclusively.
Dates as PDF Download
