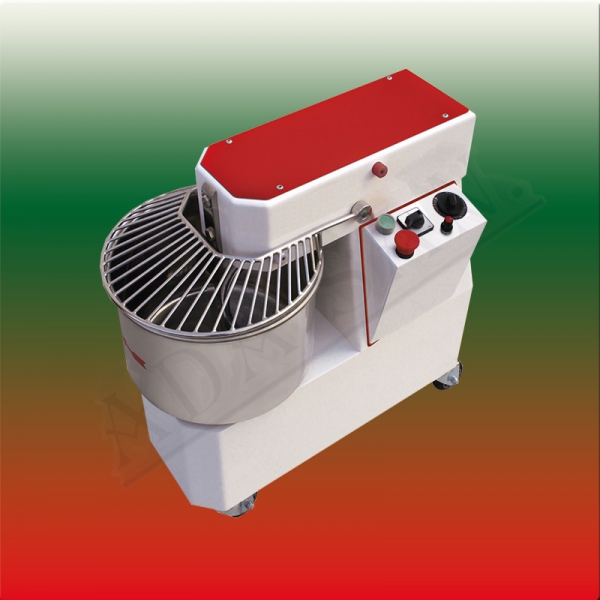

Italian Dough machine Spiral mixing machine IF 53 VS, 53L, 230V, 530x860x720mm
| Spiral mixer IF 53 VS | |
| Technical characteristics | |
| Power supply | 230 V |
| Bowl capacity | 53 l |
| Bowl diameter | 50x26 cm |
| Packing sizes | 60x96x88cm |
| Phase | 1+N+T |
| Dough/hour | 170 kg |
| Dough weight | 44 kg |
| Absorbed power | 1,5 kW |
| Three-Phase motor power | 1,5 kW - 2 HP |
| Nr. Heating Elements | 1,5 kW |
| VAC | 230 |
| Hz | 50/60 |
| Model | IF 53 VS |
| Dimensions | 530 x 860 x 720 |
| Net weight | 116 |
| Gross weight | 150 |
| Volume | 0,328176 |
| Europe-wide delivery and dealer discounts possible! | |
Dates as PDF Download
These machines replace many of the traditional ones and have remarkable advantages. Simple installation: thanks to the performances of the Inverter, they can be connected from 200 to 240 Volts, 50-60 Hz, (plugging to single phase system, or three phase 230 – 400 V); they always fit a three phase 230 Volts motor. Better reliability: the motor is fully protected from electricity overcharge, due to accidental causes, motor overheating, short circuit, etc.; it is less stressed for the reduced rpm , from 1.400/2.800 to 900/1.750. Better efficiency: energy saving up to 40% thanks to the best motor exploitation at full load. Higher performances: variable and adjustable speed by a potentiometer, from 8,8 to 17 for the bowl and from 88 to 170 rpm for the spiral. Special working cycles: the parameters of the inverter can be adjusted for special operations (the modifications are applied upon agreement between the Manufacturer and the Operator). Stocking cost optimization: one machine can cover the demand of several traditional ones of the same model. Machine more silent: thanks to the rpm drop and to the chains automatic tension regulation, by chain tensioners, there are less noises and mechanical wear of dynamic components. Cost reduction: the machine is simplified in the mechanical and electric parts. The spiral mixers with inverter are manufactured by ourselves exclusively.
