Dough machine Dough kneading machine IF 17 VS, 17L, 230V, 350x660x630mm

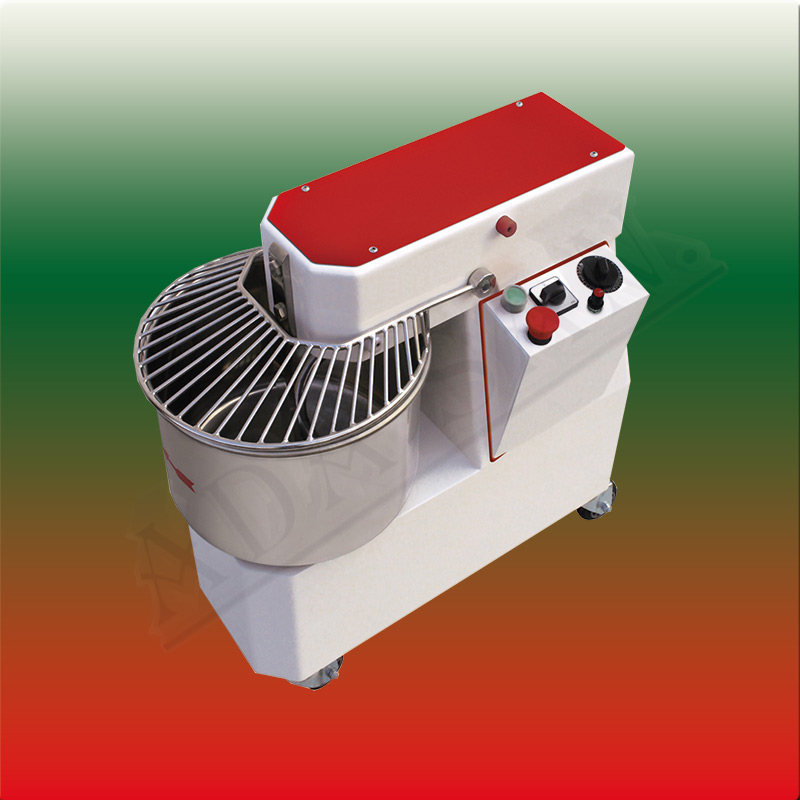

| Spiral mixer IF 17 VS | |
| Technical characteristics | |
| Power supply | 230 V |
| Bowl capacity | 17 l |
| Bowl diameter | 32x31 cm |
| Packing sizes | 47x77x77cm |
| Phase | 1+N+T |
| Dough/hour | 48 kg |
| Dough weight | 12 kg |
| Absorbed power | 0,75 kW |
| Three-Phase motor power | 0,75 kW - 1 HP |
| Nr. Heating Elements | 0,75 kW |
| VAC | 230 |
| Hz | 50/60 |
| Model | IF 17 VS |
| Dimensions | 350 x 660 x 630 |
| Net weight | 73,5 |
| Gross weight | 97,5 |
| Volume | 0,14553 |
| Europe-wide delivery and dealer discounts possible! | |
Dates as PDF Download
These machines replace many of the traditional ones and have remarkable advantages. Simple installation: thanks to the performances of the Inverter, they can be connected from 200 to 240 Volts, 50-60 Hz, (plugging to single phase system, or three phase 230 – 400 V); they always fit a three phase 230 Volts motor. Better reliability: the motor is fully protected from electricity overcharge, due to accidental causes, motor overheating, short circuit, etc.; it is less stressed for the reduced rpm , from 1.400/2.800 to 900/1.750. Better efficiency: energy saving up to 40% thanks to the best motor exploitation at full load. Higher performances: variable and adjustable speed by a potentiometer, from 8,8 to 17 for the bowl and from 88 to 170 rpm for the spiral. Special working cycles: the parameters of the inverter can be adjusted for special operations (the modifications are applied upon agreement between the Manufacturer and the Operator). Stocking cost optimization: one machine can cover the demand of several traditional ones of the same model. Machine more silent: thanks to the rpm drop and to the chains automatic tension regulation, by chain tensioners, there are less noises and mechanical wear of dynamic components. Cost reduction: the machine is simplified in the mechanical and electric parts. The spiral mixers with inverter are manufactured by ourselves exclusively.
