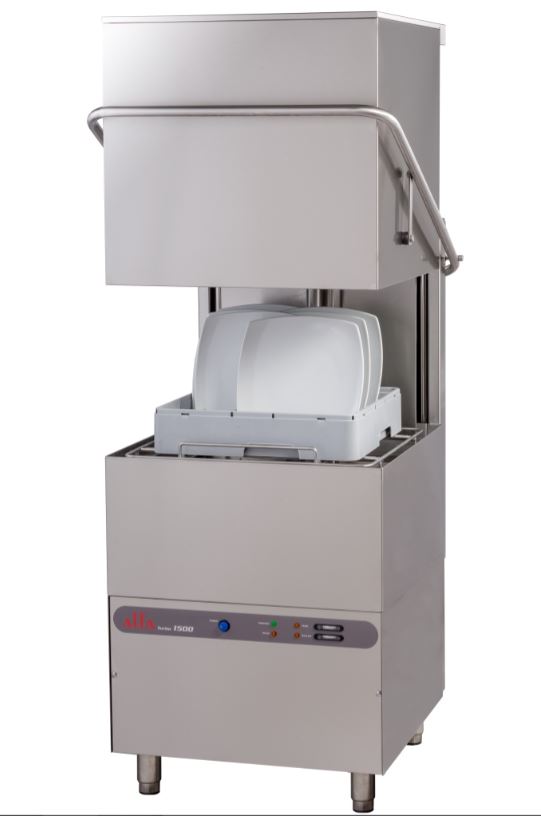

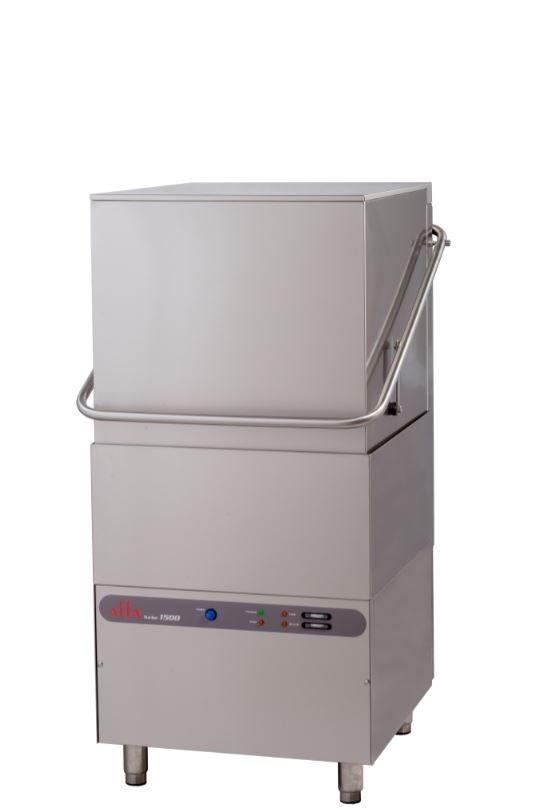

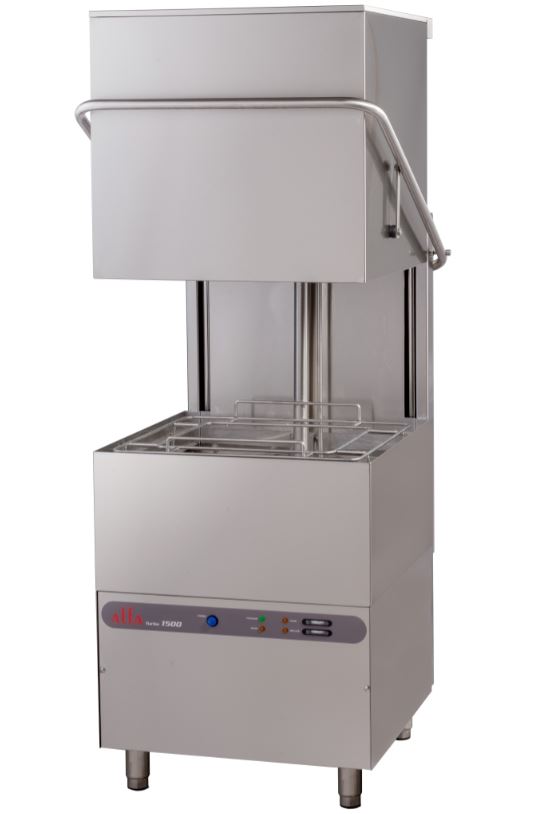

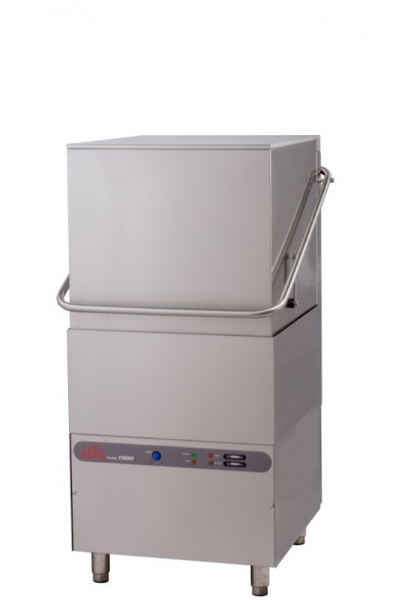

Dishwasher Elviomex Alfa Turbo 1500

Product No.:: Turbo 1500
Shipping time:: 2 Weeks (abroad may vary)
Stock:: 50 pieces
Weight:: 200 kg per piece

Voltages:

2.855,00 EUR

plus 19% tax excl. Shipping costs

Description

Bell type dishwasher

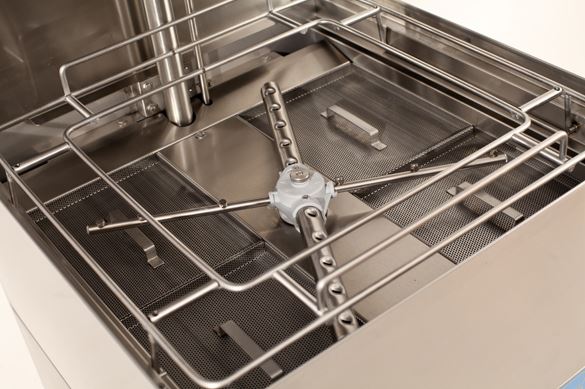

Basket 500 x 500 mm and optionally 540 x 540 mm.
• Large useful door height
• Possibility of washing GN 1/1 pan
• 1.5Hp/3 phase IP44 washing pump for powerful washing & great durability
• Electromechanical circuit
• Hydraulic dryer pump
• Stainless steel injectors
• Tank and boiler thermometer.
• Possibility of placing entry and exit counters
• Maintains upright posture for more restful use Simple to use, highly functional and durable for continuous operation.

Suitable for all public catering areas.

VOLTAGES: 220-240 V1-n 50/60 Hz

TECHNICAL CHARACTERISTICS	MOD: TURBO 1500
Power supply	400V / 50HZ
Total power	9.100 W
Pump power	1,5 HP
Electric absorption	22,75 A
Boiler heating element	8.000 W
Tank resistance	6.000 W
Boiler capacity	13,5 Lit
Tank capacity	68 Lit
Water pressure	3-6 Bar
Water consumpsion per cycle	2-3 Lit
Dishwasher dimensions	750x880x1412
Basket dimensions	50x50
Cycle interval	120 SEC
Weight gross/net	131,5 Kg/ 148 Kg
Water connection	3 / 4"
Draining pipe	Φ 32-35
Stainless steel cabinet	18/8 ΑISI 304
Package dimensions	760x900x1540

Equipment	STANDAR ● / OPTIONS o
Automatic filling	●
Door safety	●
Rinse aid valve	●
Pressure hose 3/4"	●
Drain hose	●
Thermal protection	BOILER ● TANK ●
Boiler thermometer	●
Tank thermometer	●
Glasses basket	● 1
Dishes basket	● 1
Cutlery basket	● 1
Detergent pump	o

TURBO 1500
Door opening 40 cm
Waterproof IP 44 pump
Standard boiler thermometer
Standard tank thermometer
Stainless steel tank AISI/304 1mm
Automatic start by closing the hood
Double tank's filters
Closed hood from 4 sides
Capablility of 50x50 cm or 54x54 cm basket

TECNISCHE ANGABEN	MOD: TURBO 1500
Betriebsspannung	400V / 50HZ
Gesamtleistung	9.100 W
Pumpenleistung	1,5 HP
Elektrische Absorbierung	22,75 A
Boiler Widerstand	8.000 W
Tank Widerstand	6.000 W
Boiler Kapazität	13,5 Lit
Tank Kapazität	68 Lit
Wasserversorgungdruck	3-6 Bar
Wasser Verbrauch Pro Zyklus	2-3 Lit
Spuelmaschinenmasse	750x880x1412
Korbmasse	50x50
Spueldauer	120 SEC
Gewicht Netto/Brutto	131,5 Kg/ 148 Kg
Wasseranschluss	3 / 4"
Abflussrohre	Φ 32-35
Gehause aus Rostfreiem Stahl	18/8 ΑISI 304
Verpackungmasse	760x900x1540

Ausruestung	STANDAR ● / OPTIONS o
Automatische Versorgung	●
Tuersicheitsschalter	●
Trockenmittel-Ventil	●
Elastischer Druckschlauch 3/4"	●
Elastischer Abflusschlauch	●
Thermosicherung	BOILER ● TANK ●
Boiler-Thermometer	●
Tank-Thermometer	●
Gläser Korb	● 1
Geschirr Korb	● 1
Besteck Korb	● 1
Elektrischer Dosierer far Flassigreiniger	o

TURBO 1500
Netto Türöffnung 40 cm
Nach IP 44 dichte Waschpumpe
Teller – Glass – korb 50x50 und 54x54
Boilerthermometer
Tankthermometer
Tank aus Edelstahl (AISI-304), 1mm Dicke
Automatisches Programmstarten mit dem Türschließen
Doppelte rostfreie Tankfilter
Geschlossener und beweglicher Tank auf der Rückseite.
Geschlossene Geschirrspülrückwand aus Edelstahl

DONNEES TECHNIQUES	MOD: TURBO 1500
Alimentation en electricite	400V / 50HZ
Puissance totale	9.100 W
Puissande de la pompe	1,5 HP
Absorption electrique	22,75 A
Resistance de la chaudiere	8.000 W
Resistance de la cuve	6.000 W
Capacite de la chaudiere	13,5 Lit
Capacite de la cuve	68 Lit
Pression de reseau	3,6 Bar
Consommation d'eau / cycle	2-3 Lit
Dimension de la machine	750x880x1412
Dimension des paniers	50x50
Duree du cycle	120 SEC
Poids net / brut	131,5 Kg/ 148 Kg
Alimentation hydraulique	3 / 4"
Tuyau de drainage	Φ 32-35
Carrosserie en acier inox	18/8 ΑISI 304
Dimensions en emballage	760x900x1540

Equipment	STANDAR ● / OPTIONS o
Remlissage automatique	●
Securite de la porte	●
Vavle de rincage	●
Tuyau de pression elastique	●
Tuyau de drainage elastique	●
Protection thermique	BOILER ● TANK ●
Thermometre de la chaudiere	●
Thermometre de la cuve	●
Panier verres	● 1
Panier assiettes	● 1
Panier cuilleres	● 1
Doseur ilectrique ditergent	o

DATOS TECNICOS	MOD: TURBO 1500
Tension alimentacion	400V / 50HZ
Enlase total	9.100 W
Potencia de bomba	1,5 HP
Absorbimiento electrico	22,75 A
Resistencia de hervivor	8.000 W
Resistencia de cubeta	6.000 W
Capacidad de hervidor	13,5 Lit
Capacidad de cubeta	68 Lit
Pression alimentacion	3-6 Bar
Consumo de agua por cicle	2-3 Lit
Dimensiones de maquina	750x880x1412
Dimensiones de conasta	50x50
Duracion de ciclo	120 SEC
Peso neto / bruto	131,5 Kg/ 148 Kg
Alimentacion hidraulica	3 / 4"
Tubo de desage	Φ 32-35
Cuerpo en aciero inox	18/8 ΑISI 304
Dimensiones con imballo	760x900x1540

Dotacion	STANDAR ● / OPTIONS o
Vibel aqua automatico	●
Seguridad de la puerta	●
Dosificador abrillantador	●
Tubo alimentacion 3/4"	●
Tubo de desage	●
Termoproteccion	BOILER ● TANK ●
Termometro de hervidor	●
Termometro de cubeta	●
Canasta para vasos	● 1
Canasta para platos	● 1
Canasta para cucharas	● 1
Bomba dosificadora de detergente	o
