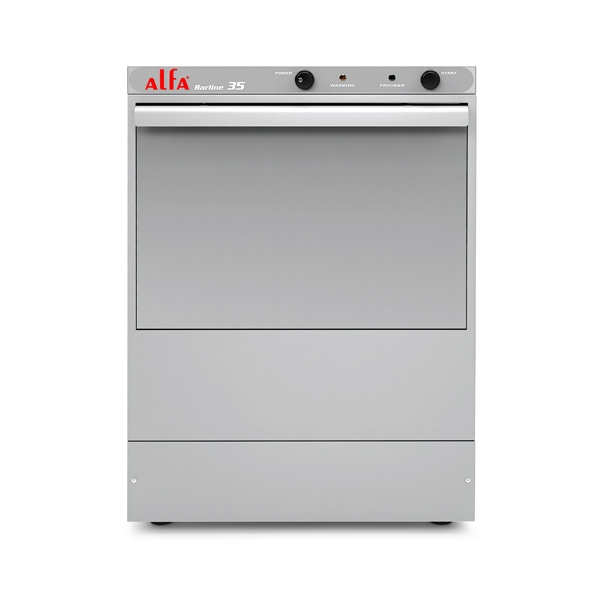

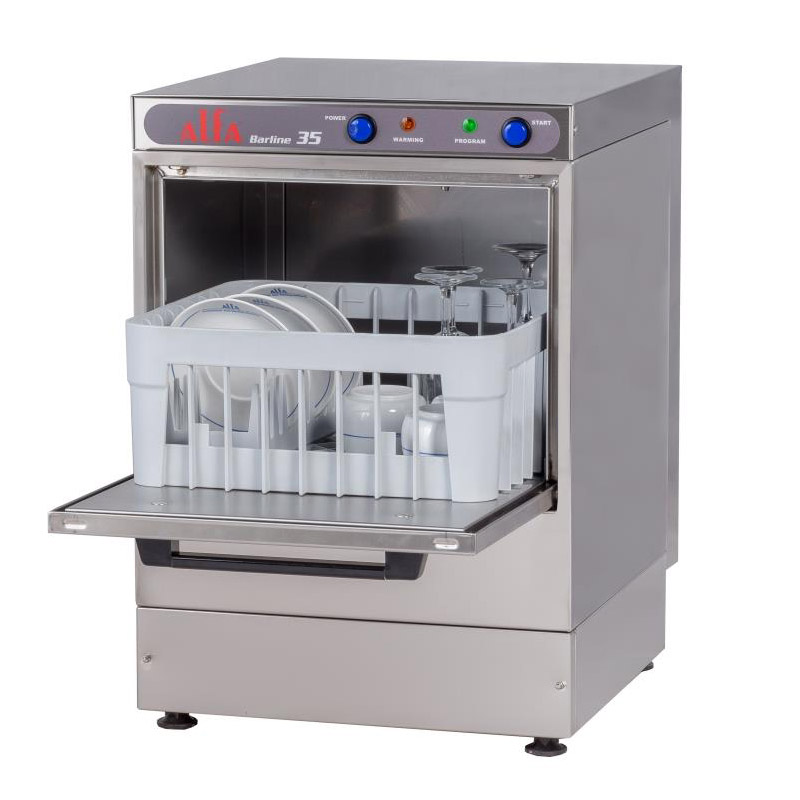

Dishwasher Elviomex Alfa Barline 35F

Name: Dishwasher Elviomex Alfa Barline 35F
SKU: Barline 35
Price: 934.90 EUR
Availability: InStock

Product No.:: Barline 35
Shipping time:: 2 Weeks (abroad may vary)
Stock:: 50 pieces
Weight:: 30 kg per piece

934,90 EUR

plus 19% tax excl. Shipping costs

Add to wish list

Price offer

Description

Basic is a heavy-duty line of electromechanical glass and dishwashers that combine flexibility and efficiency. Basic line with minimal design and many different configurations will fit in every space and will cover your needs in full.

Power Supply 220-240 V 1 ~ N 50/60 Hz
Max Power 2,6 Kw
Max Amperes 9,5 A
Boiler heating element 2,4 Kw
Tank heating element 2,0 Kw
Boiler capacity 2,1 Lt
Tank capacity 14 Lt
Ext. dimensions 420 X 460 X 600 mm
Basket size 350 X 350 mm
Washing cycles 120 sec
Pump power 0,1 hp
Peristaltic detergent pump optional
Peristaltic rinse aid pump optional
Boiler’s thermal protection 105°C thermofuse
Tank’s thermal protection 99°C thermofuse
Max glass 240 mm
Max dish N/A

TECHNICAL CHARACTERISTICS	MOD: BARLINE 35F
Power supply	230V / 50HZ
Total power	2.600 W
Pump power	0,1 HP
Electric absorption	9,15 A
Boiler heating element	2.500 W
Tank resistance	2.000 W
Boiler capacity	2,1 Lit
Tank capacity	14 Lit
Water pressure	2-5 Bar
Water consumpsion per cycle	2-2,5 Lit
Dishwasher dimensions	420Χ470Χ600
Basket dimensions	35Χ35
Cycle interval	120 SEC
Weight gross/net	27 Kg/ 30 Kg
Water connection	3 / 4"
Draining pipe	Φ 29-34
Stainless steel cabinet	18/8 ΑISI 304
Package dimensions	450X550X770
EQUIPMENT	STANDAR ● / OPTIONS o
Automatic filling	●
Door safety	●
Rinse aid valve	●
Pressure hose 3/4"	●
Drain hose	●
Thermal protection	BOILER ● TANK ●
Boiler thermometer	―
Tank thermometer	―
Tank draining pump	―
Glasses basket	● x 2
Cutlery basket	● x 1

BARLINE 35F

Door opening 27 cm

Double skin door

Stainless steel wash and rinse system

Stainless steel tank AISI/304 1mm

TECHNISCHE ANGABEN	MOD: BARLINE 35F
Betriebsspannung	230V / 50HZ
Gesamtleistung	2.600 W
Pumpenleistung	0,1 HP
Elektrische Absorbierung	9,15 A
Boiler Widerstand	2.500 W
Tank Widerstand	2.000 W
Boiler Kapazität	2,1 Lit
Tank Kapazität	14 Lit
Wasserversorgungsdruck	2-5 Bar
Wasser Verbrauch Pro Zyklus	2-2,5 Lit
Spülmaschinenmasse	420Χ470Χ600
Korbmasse	35Χ35
Spüldauer	120 SEC
Gewicht Netto/Brutto	27 Kg/ 30 Kg
Wasseranschluss	3 / 4"
Abflussrohre	Φ 29-34
Gehäuse aus Rostfreiem Stahl	18/8 ΑISI 304
Verpackungsmasse	450X550X770
AUSRÜSTUNG	STANDAR ● / OPTIONS o
Automatische Versorgung	●
Türsicherheitsschalter	●
Trockenmittel-Ventil	●
Elastischer Druckschlauch 3/4"	●
Elastischer Abflussschlauch	●
Thermosicherung	BOILER ● TANK ●
Boiler-Thermometer	―
Tank-Thermometer	―
Wassertankpumpe	―
Gläser Korb	● x 2
Besteck Korb	● x 1

BARLINE 35F

Netto Türöffnung 27 cm

Doppelte Türwand

Hydraulik – System aus Edelstahl zum Spülen und Abspülen

Tank aus Edelstahl (AISI-304), 1mm Dicke

DONNEES TECHNIQUES	MOD: BARLINE 35F
Alimentation en electricite	230V / 50HZ
Puissance totale	2.600 W
Puissande de la pompe	0,1 HP
Absorption electrique	9,15 A
Resistance de la chaudiere	2.500 W
Resistance de la cuve	2.000 W
Capacite de la chaudiere	2,1 Lit
Capacite de la cuve	14 Lit
Pression de reseau	2-5 Bar
Consommation d'eau / cycle	2-2,5 Lit
Dimension de la machine	420Χ470Χ600
Dimension des paniers	35Χ35
Duree du cycle	120 SEC
Poids net / brut	27 Kg/ 30 Kg
Alimentation hydraulique	3 / 4"
Tuyau de drainage	Φ 29-34
Carrosserie en acier inox	18/8 ΑISI 304
Dimensions en emballage	450X550X770
EQUIPMENT	STANDAR ● / OPTIONS o
Remlissage automatique	●
Securite de la porte	●
Vavle de rincage	●
Tuyau de pression elastique	●
Tuyau de drainage elastique	●
Protection thermique	BOILER ● TANK ●
Thermometre de la chaudiere	―
Thermometre de la cuve	―
Pompe de drainage de la cuve	―
Panier verres	● x 2
Panier cuilleres	● x 1

DATOS TECNICOS	MOD: BARLINE 35F
Tension alimentacion	230V / 50HZ
Enlase total	2.600 W
Potencia de bomba	0,1 HP
Absorbimiento electrico	9,15 A
Resistencia de hervivor	2.500 W
Resistencia de cubeta	2.000 W
Capacidad de hervidor	2,1 Lit
Capacidad de cubeta	14 Lit
Pression alimentacion	2-5 Bar
Consumo de agua por cicle	2-2,5 Lit
Dimensiones de maquina	420Χ470Χ600
Dimensiones de conasta	35Χ35
Duracion de ciclo	120 SEC
Peso neto / bruto	27 Kg/ 30 Kg
Alimentacion hidraulica	3 / 4"
Tubo de desage	Φ 29-34
Cuerpo en aciero inox	18/8 ΑISI 304
Dimensiones con imballo	450X550X770
DOTACION	STANDAR ● / OPTIONS o
Vibel aqua automatico	●
Seguridad de la puerta	●
Dosificador abrillantador	●
Tubo alimentacion 3/4"	●
Tubo de desage	●
Termoproteccion	BOILER ● TANK ●
Termometro de hervidor	―
Termometro de cubeta	―
Pompa de evacuacion de cubeta	―
Canasta para vasos	● x 2
Canasta para cucharas	● x 1

TECHNISCHE GEGEVENS	MOD: BARLINE 35F
Spanning / frequentie	230V / 50HZ
Totaal vermogen	2.600 W
Pompkracht	0,1 HP
Elektrische absorptie	9,15 A
Boiler weerstand	2.500 W
Kuip weerstand	2.000 W
Inhoud boiler	2,1 Lit
Inhoud kuip	14 Lit
Waterdruk	2-5 Bar
Water verbruik per cyclus	2-2,5 Lit
Afmetingen	420Χ470Χ600
Afmeting mand	35Χ35
Cyclus	120 SEC
Gewicht nett / brutto	27 Kg/ 30 Kg
Water aansluiting	3 / 4"
Afvoerdarm	Φ 29-34
Uitvoering in inox	18/8 ΑISI 304
Afmetingen verpakking	450X550X770
ACCESOIRES	STANDAR ● / OPTIONS o
Automatische vulling	●
Deurbeveiliging	●
Spoel ventiel	●
Drukslang 3/4"	●
Afvoerdarm	●
Thermische beveiliging	BOILER ● TANK ●
Boiler thermometer	―
Kuip thermometer	―
Afvoerpomp	―
Mand glazen	● x 2
Bestekmand	● x 1

ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ	MOD: BARLINE 35F
ΠΑΡΟΧΗ ΗΛΕΚΤΡΙΚΟΥ ΡΕΥΜΑΤΟΣ	230V / 50HZ
ΣΥΝΟΛΙΚΗ ΙΣΧΥΣ	2.600 W
ΙΣΧΥΣ ΑΝΤΛΙΑΣ	0,1 HP
ΗΛΕΚΤΡΙΚΗ ΑΠΟΡΡΟΦΗΣΗ	9,15 A
ΑΝΤΙΣΤΑΣΗ ΜΠΟΙΛΕΡ	2.500 W
ΑΝΤΙΣΤΑΣΗ ΚΑΔΟΥ	2.000 W
ΧΩΡΗΤΙΚΟΤΗΤΑ ΜΠΟΙΛΕΡ	2,1 Lit
ΧΩΡΗΤΙΚΟΤΗΤΑ ΚΑΔΟΥ	14 Lit
ΠΙΕΣΗ ΔΙΚΤΥΟΥ ΝΕΡΟΥ	2-5 Bar
ΚΑΤΑΝΑΛΩΣΗ ΝΕΡΟΥ/ ΚΥΚΛΟΥ	2-2,5 Lit
ΔΙΑΣΤΑΣΕΙΣ ΠΛΥΝΤΗΡΙΟΥ	420Χ470Χ600
ΔΙΑΣΤΑΣΕΙΣ ΚΑΛΑΘΙΟΥ	35Χ35
ΧΡΟΝΟΣ ΠΡΟΓΡΑΜΜΑΤΟΣ	120 SEC
ΒΑΡΟΣ ΚΑΘΑΡΟ/ΜΙΚΤΟ	27 Kg/ 30 Kg
ΣΥΝΔΕΣΗ ΠΑΡΟΧΗΣ ΝΕΡΟΥ	3 / 4"
ΣΩΛΗΝΑΣ ΑΠΟΧΕΤΕΥΣΗΣ	Φ 29-34
ΣΩΜΑ ΑΠΌ ΑΝΟΞΕΙΔΩΤΟ ΧΑΛΥΒΑ	18/8 ΑISI 304
ΔΙΑΣΤΑΣΕΙΣ ΣΥΣΚΕΥΑΣΙΑΣ	450X550X770
ΕΞΟΠΛΙΣΜΟΣ	STANDAR ● / OPTIONS o
ΑΥΤΟΜΑΤΟ ΓΕΜΙΣΜΑ	●
ΑΣΦΑΛΕΙΑ ΠΟΡΤΑΣ	●
ΒΑΛΒΙΔΑ ΣΤΕΓΝΩΤΙΚΟΥ	●
ΕΛΑΣΤΙΚΟΣ ΣΩΛΗΝΑΣ ΠΙΕΣΗΣ 3/4	●
ΕΛΑΣΤΙΚΟΣ ΣΩΛΗΝΑΣ ΑΠΟΧΕΤΕΥΣΗΣ	●
ΘΕΡΜΙΚΗ ΑΣΦΑΛΕΙΑ	BOILER ● TANK ●
ΘΕΡΜΟΜΕΤΡΟ ΜΠΟΙΛΕΡ	―
ΘΕΡΜΟΜΕΤΡΟ ΚΑΔΟΥ	―
ΑΝΤΛΙΑ ΑΔΕΙΑΣΜΑΤΟΣ ΚΑΔΟΥ	―
ΚΑΛΑΘΙ ΠΟΤΗΡΙΩΝ	● x 2
ΚΟΥΤΑΛΟΘΗΚΗ	● x 1
