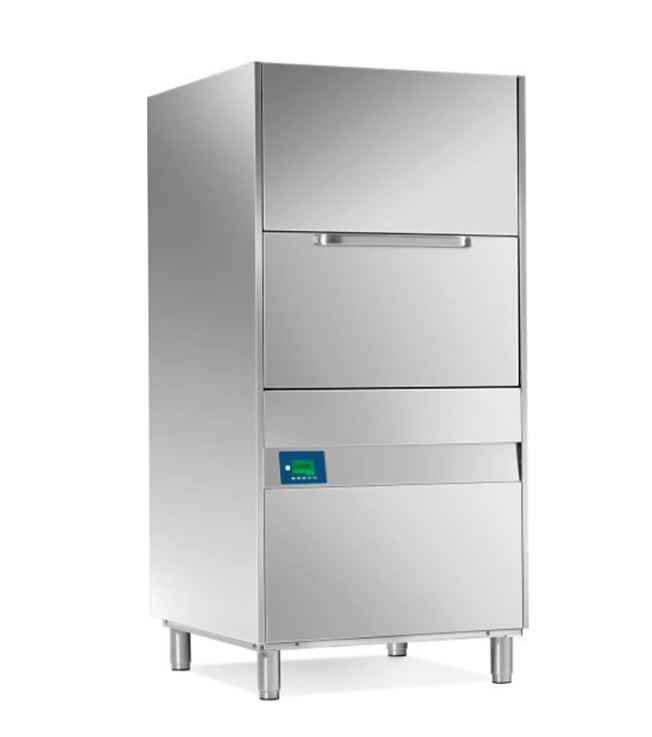

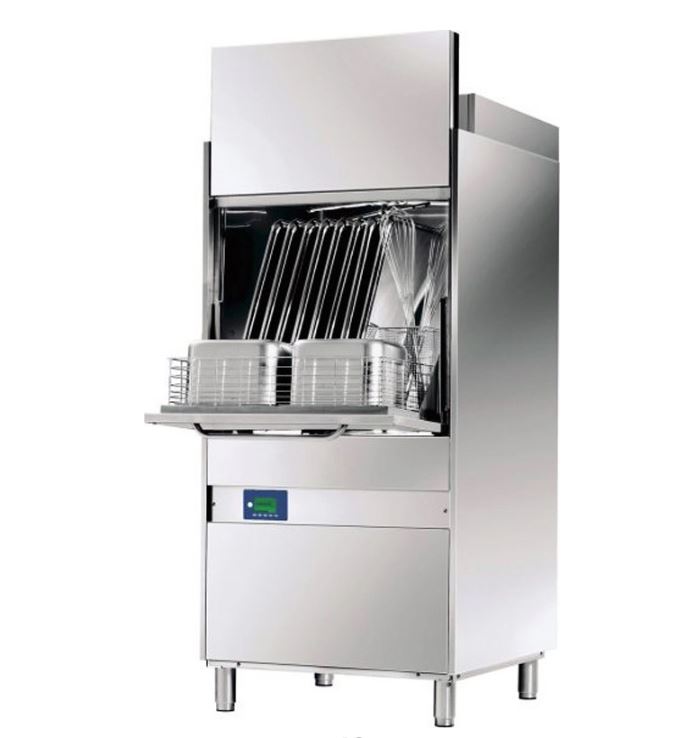

Basket size: 70 x 70 cm
Maximum usable height: 64.5 cm
With bucket thermometer and boiler
With IP44 type waterproof washer pump
4 washing times: 3, 6, 9 & 12 minutes
Stainless steel sheet thickness: 1 mm
Noise: 63.8db(A)
Baskets / hour: 20/ 10 / 6 / 5 (min. temp. 55°C)
Power: 8.2 kW / 380V (three-phase)
Outside length (cm): 84
External depth (cm): 66.5
External height (cm): 179 / 205 (open door)
Bucket capacity: 78 lt
Blade drag power: 6 kw
Pump power: 2 x 1.7 kW
Boiler capacity: 20 lt
Boiler resistance power: 9.0 kW
Power supply 400 V3-N 50Hz
External dimensions 840x665x1790 mm / 2050 mm with the door open
Power 12.5kW
Power boiler 9.0 kW
Bin power 6.0 kW boiler capacity 20 lt
Tank capacity 78 lt
Basket dimensions 700 x 700 mm
Usable door height 645 mm
Washing time 3 / 6 / 9 / 12 minutes baskets / time 20 / 10 / 6 / 5
Power of the washing machine pump 2x1.7 kW
Rinse pump power 250W
Water consumption/wash cycle 4.3 liters
TECHNICAL CHARACTERISTICS | MOD: VERGINA 50 SF: 3-Phases 230 V 3,6 Kw |
Power supply | 230V / 50HZ |
Total power | 3.600 W |
Pump power | 0,75 HP |
Electric absorption |
15,6 A |
Boiler heating element | 3.000 W |
Tank resistance |
2.800 W |
Boiler capacity |
6 Lit |
Tank capacity | 35 Lit |
Water pressure | 2-5 Bar |
Water consumpsion per cycle | 2-2,5 Lit |
Dishwasher dimensions | 570Χ600Χ850 |
Basket dimensions | 50x50 |
Cycle interval | 120 SEC |
Weight gross/net | 55 Kg/ 60 Kg |
Water connection | 3 / 4" |
Draining pipe | Φ 29-34 |
Stainless steel cabinet | 18/8 ΑISI 304 |
Package dimensions | 590X690X1000 |
EQUIPMENT | STANDAR ● / OPTIONS o |
Automatic filling | ● |
Door safety | ● |
Rinse aid valve | ● |
Pressure hose 3/4" | ● |
Drain hose | ● |
Thermal protection |
BOILER ● TANK ● |
Boiler thermometer | ● |
Tank thermometer | o |
Tank draining pump | o |
Glasses basket | ● 1 |
Dishes basket | ● 1 |
Cutlery basket | ● |
Detergent pump | o |
D.V.G.W. Valve | ● |
Door opening 36 cm
Double skin door
Potential connection for draining pump
Stainless steel wash and rinse system
Stainless steel tank AISI/304 1mm
Waterproof IP 44 pump
Standard Break tank valve
Standard boiler thermometer
3-Phases 230 V 3,6 Kw
TECNISCHE ANGABEN | MOD: VERGINA 50 SF: 3-Phasen 230 V 3,6 Kw |
Betriebsspannung | 230V / 50HZ |
Gesamtleistung | 3.600 W |
Pumpenleistung | 0,75 HP |
Elektrische Absorbierung | 15,6 A |
Boiler Widerstand | 3.000 W |
Tank Widerstand | 2.800 W |
Boiler Kapazität | 6 Lit |
Tank Kapazität | 35 Lit |
Wasserversorgungdruck | 2-5 Bar |
Wasser Verbrauch Pro Zyklus | 2-2,5 Lit |
Spuelmaschinenmasse | 570Χ600Χ850 |
Korbmasse | 50x50 |
Spueldauer | 120 SEC |
Gewicht Netto/Brutto | 55 Kg/ 60 Kg |
Wasseranschluss | 3 / 4" |
Abflussrohre | Φ 29-34 |
Gehause aus Rostfreiem Stahl | 18/8 ΑISI 304 |
Verpackungmasse | 590X690X1000 |
AUSRÜSTUNG | STANDAR ● / OPTIONS o |
Automatische Versorgung | ● |
Tuersicheitsschalter | ● |
Trockenmittel-Ventil | ● |
Elastischer Druckschlauch 3/4" | ● |
Elastischer Abflusschlauch | ● |
Thermosicherung | BOILER ● TANK ● |
Boiler-Thermometer | ● |
Tank-Thermometer | o |
Wassertankpumpe | o |
Gläser Korb | ● 1 |
Geschirr Korb | ● 1 |
Besteck Korb | ● |
Elektrischer Dosierer für Flassigreiniger | o |
D.V.G.W. Valve | ● |
Netto Türöffnung 36 cm
Doppelte Türwand
Nach IP 44 dichte Waschpumpe
Protektionssystem verbietet das Wasser vom Kessel zu den Wasserleitungen zu fliessen
Boilerthermometer
Tank aus Edelstahl (ALSI-304), 1mm Dicke
3-Phasen 230 V 3,6 Kw
DONNEES TECHNIQUES | MOD: VERGINA 50 SF: 3-Phases 230 V 3,6 Kw |
Alimentation en electricite | 230V / 50HZ |
Puissance totale | 3.600 W |
Puissande de la pompe | 0,75 HP |
Absorption electrique |
15,6 A |
Resistance de la chaudiere | 3.000 W |
Resistance de la cuve |
2.800 W |
Capacite de la chaudiere |
6 Lit |
Capacite de la cuve | 35 Lit |
Pression de reseau | 2-5 Bar |
Consommation d'eau / cycle | 2-2,5 Lit |
Dimension de la machine | 570Χ600Χ850 |
Dimension des paniers | 50x50 |
Duree du cycle | 120 SEC |
Poids net / brut | 55 Kg/ 60 Kg |
Alimentation hydraulique | 3 / 4" |
Tuyau de drainage | Φ 29-34 |
Carrosserie en acier inox | 18/8 ΑISI 304 |
Dimensions en emballage | 590X690X1000 |
EQUIPMENT | STANDAR ● / OPTIONS o |
Remlissage automatique | ● |
Securite de la porte | ● |
Vavle de rincage | ● |
Tuyau de pression elastique | ● |
Tuyau de drainage elastique | ● |
Protection thermique |
BOILER ● TANK ● |
Thermometre de la chaudiere | ● |
Thermometre de la cuve | o |
Pompe de drainage de la cuve | o |
Panier verres | ● 1 |
Panier assiettes | ● 1 |
Panier cuilleres | ● |
Doseur ilectrique ditergent | o |
D.V.G.W. valve | ● |
DATOS TECNICOS | MOD: VERGINA 50 SF: 3-Phases 230 V 3,6 Kw |
Tension alimentacion | 230V / 50HZ |
Enlase total | 3.600 W |
Potencia de bomba | 0,75 HP |
Absorbimiento electrico |
15,6 A |
Resistencia de hervivor | 3.000 W |
Resistencia de cubeta |
2.800 W |
Capacidad de hervidor |
6 Lit |
Capacidad de cubeta | 35 Lit |
Pression alimentacion | 2-5 Bar |
Consumo de agua por cicle | 2-2,5 Lit |
Dimensiones de maquina | 570Χ600Χ850 |
Dimensiones de conasta | 50x50 |
Duracion de ciclo | 120 SEC |
Peso neto / bruto | 55 Kg/ 60 Kg |
Alimentacion hidraulica | 3 / 4" |
Tubo de desage | Φ 29-34 |
Cuerpo en aciero inox | 18/8 ΑISI 304 |
Dimensiones con imballo | 590X690X1000 |
DOTACION | STANDAR ● / OPTIONS o |
Vibel aqua automatico | ● |
Seguridad de la puerta | ● |
Dosificador abrillantador | ● |
Tubo alimentacion 3/4" | ● |
Tubo de desage | ● |
Termoproteccion |
BOILER ● TANK ● |
Termometro de hervidor | ● |
Termometro de cubeta | o |
Pompa de evacuacion de cubeta | o |
Canasta para vasos | ● 1 |
Canasta para platos | ● 1 |
Canasta para cucharas | ● |
Bomba dosificadora de detergente | o |
D.V.G.W. valve | ● |
TECHNISCHE GEGEVENS |
MOD: VERGINA 50 SF: 3-Phases 230 V 3,6 Kw |
Spanning / frequentie | 230V / 50HZ |
Totaal vermogen | 3.600 W |
Pompkracht | 0,75 HP |
Elektrische absorptie |
15,6 A |
Boiler weerstand | 3.000 W |
Kuip weerstand |
2.800 W |
Inhoud boiler |
6 Lit |
Inhoud kuip | 35 Lit |
Waterdruk | 2-5 Bar |
Water verbruik per cyclus | 2-2,5 Lit |
Afmetingen | 570Χ600Χ850 |
Afmeting mand | 50x50 |
Cyclus | 120 SEC |
Gewicht nett / bruto | 55 Kg/ 60 Kg |
Water aansluiting | 3 / 4" |
Afvoerdarm | Φ 29-34 |
Uitvoering in inox | 18/8 ΑISI 304 |
Afmetingen verpakking | 590X690X1000 |
ACCESOIRES | STANDAR ● / OPTIONS o |
Automatische vulling | ● |
Deurbeveiliging | ● |
Spoel ventiel | ● |
Drukslang 3/4" | ● |
Afvoerdarm | ● |
Thermische beveiliging |
BOILER ● TANK ● |
Boiler thermometer | ● |
Kuip thermometer | o |
Afvoerpomp | o |
Mand glazen | ● 1 |
Bordenmnand | ● 1 |
Bestekmand | ● |
Doseerpomp | o |
D.V.G.W. valve | ● |
