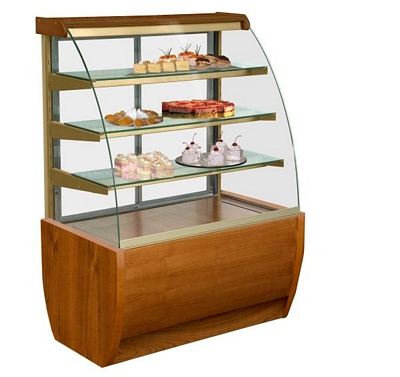

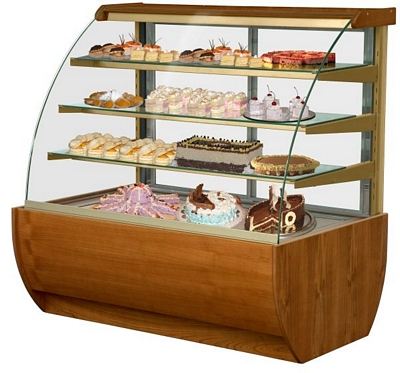

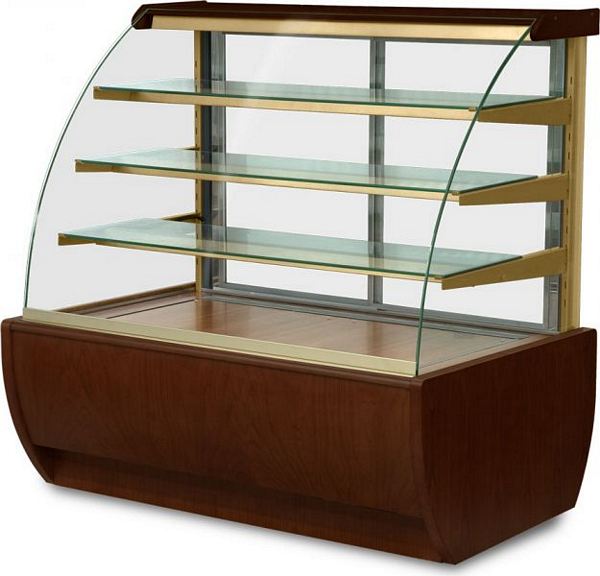

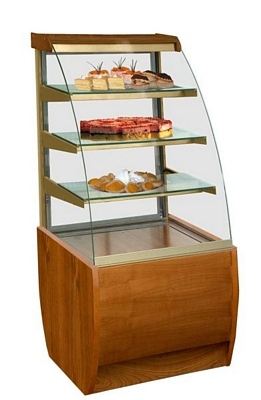

Showcase cake Mexico, and matching inside corner, outside corner
Showcase cake Mexico, and matching inside corner, outside corner
PASTRY CASE „Mexico” |
Model |
0.6W |
0.9W |
1.3W |
Length (wood case/stainless steel case)[mm] |
665/605 |
965/905 |
1365/1305 |
Depth (wood case/stainless steel case) [mm] |
865/810 |
865/810 |
865/810 |
Height [mm] |
1360 +/- 10 |
1360 +/- 10 |
1360 +/- 10 |
Maximum load per 1 shelf [kg] |
6 |
8 |
10 |
Refrigerated shelf area [m2] |
0,96 |
1,5 |
2,1 |
Net volume [dm3] |
203 |
305 |
440 |
Voltage 230V/50Hz or 115V/60 Hz [V] |
yes |
yes |
yes |
Total power [W] |
500 |
600 |
850 |
Lighting power [W] |
60 |
72 |
144 |
Electrical energy consumption [kWh/24h] |
7 |
8 |
12 |
Forced air cooling system |
yes |
yes |
yes |
Temperature range [ºC] |
+4+15 |
+4+15 |
+4+15 |
Refrigerant |
R 134 A |
R 134 A |
R 134 A |
Standard |
Automatic defrosting |
yes |
yes |
yes |
Automatic condensational disposal |
yes |
yes |
yes |
Possibility of multiplexing |
yes |
yes |
yes |
Cherry finish wood case |
yes |
yes |
yes |
Gold color aluminium profiles |
yes |
yes |
yes |
Warm air front glass defogger (not applicable with stainless steel case type) |
yes |
yes |
yes |
Tempered front glass |
yes |
yes |
yes |
Display shelves |
yes |
yes |
yes |
Optional |
- compressor (built in)
- dynamic cooling
- ecological polyurethane foam insulation
- wooden case (appliance front) – colour-choice option
- back sliding door with combined glass (self-closing)
- gold-painted internal frame
- curved, high -movelable front glass
- defogger (front glass)
- lighting for each shelf
- yellow fluorescent lamp
- display shelves (height/angle adjustable)
- adjustable legs
- auto defrost
- automatic condenser evaporisation
- electronic controller with digital temperature gauge
- condenser impurity or fan operation failure alarm*
|
Additional Equipment |
- external housing made of stainless plate
- Internal frame made of stainless steel
- temperature recorder *
- humidity control system
- small tray
- large tray
Accessories
- appliance designed for individual display
- LED (Light-Emitting Diode) illumination
- temperature recorder conductor (RS232 - USB)
|
|
All equipment is designed to operate in controlled environment below 25 °C, and HR 60% relative humidity
Pull type door Specifications are subject to change without notice |
